Polyester Screen Printing Mesh

370CM polyester for Textiles

Item No.: 00098
370CM white or yellow color polyester Screen Printing Mesh for Textiles
Description
Description

Max width 370CM white or yellow color polyester Screen Printing Mesh for Textiles

Introduction:
SRING SDW 10T-180T Polyester Textile Screen Printing mesh – The professional use screen printing mesh is produced with high quality yarn which imported from Japan or made in china (Jintong) with Sulzer Ruti weaving machine P7100. SPRING WSD is the best screen printing mesh for the textile stencil, as its printing application is almost unlimited – is suitable for printing any substrate. SPRING WSD provide you all screen printing mesh size.
Application:
Costume screen printing: T-shirt screen printing, Fashion screen printing, Sportswear screen printing, Swimwear screen printing, etc. Luggage, Shoes and Hats screen printing: Computer Bag screen printing, Handbags screen printing, Shopping bags screen printing, Luggage screen printing, Wallets screen printing, composite packaging materials screen printing, Canvas Shoes screen printing, hat/cap screen printing, etc.

Home Textiles screen printing: Scarves screen printing, Pillow screen printing, Tablecloths screen printing, Sleeping Bags screen printing, Bedclothes screen printing, Curtains screen printing, Seat screen printing, etc. Advertising Gifts screen printing: Mouse Pad screen printing, Textile Slippers screen printing, Coasters screen printing, Bar Cushion screen printing, Paintings screen printing, Flags screen printing, Umbrella screen printing, etc. Outdoor products screen printing: Tents screen printing, Beach Chairs screen printing, Sun Shade screen printing, etc.

Specification:

Type Mesh/CM Mesh/inch Wire Dia.(um) Mesh Opening(um) Open Area
(%)
Thickness
(um)
DPP7/350 7 18 350 1080 57 640
DPP8/300 8 20 300 950 58 550
DPP10/250 10 25 250 700 49 480
DPP12/250 12 30 250 583 49 450
DPP16/200 16 40 200 425 46 400
DPP20/100 20 50 100 400 64 200
DPP20/120 20 50 120 380 58 230
DPP20/150 20 50 150 350 49 280
DPP24/100 24 60 100 317 58 190
DPP24/120 24 60 120 297 51 240
DPP29/120 29 76 120 213 41 240
DPP32/80 32 80 80 232 55 140
DPP32/100 32 80 100 213 46 200
DPP34/100 34 86 100 194 44 221
DPP36/80 36 90 80 198 51 156
DPP36/100 36 90 100 178 41 216
DPP39/55 39 99 55 201 62 100
DPP40/80 40 100 80 170 46 150
DPP43/80 43 110 80 153 43 130
DPP47/55 47 120 55 158 55 105
DPP47/71 47 120 71 142 44 135
DPP53/55 53 135 55 134 50 105
DPP53/64 53 135 64 125 44 120
DPP59/55 59 150 55 114 46 105
DPP59/64 59 150 64 105 39 120
DPP61/55 61 155 55 109 44 110
DPP62/64 62 155 64 100 37 115
DPP64/55 64 163 55 101 42 105
DPP64/64 64 163 64 92 35 120
DPP68/55 68 173 55 92 39 107
DPP68/64 68 173 64 83 32 130
DPP72/48 72 183 48 94 46 80
DPP72/55 72 183 55 84 37 100
DPP77/55 77 195 55 75 33 105
DPP80/48 80 200 48 77 38 92
PP90/45 90 230 45 72 42 70
DPP90/48 90 230 48 66 35 85
DPP100/40 100 250 40 61 37 70
DPP110/40 110 280 40 52 33 85
DPP120/34 120 300 34 48 32 55
DPP120/40 120 300 40 42 26 68
DPP140/34 140 350 34 37 24 58
DPP150/31 150 380 31 34 26 46
DPP165/31 165 420 31 30 24 60
DPP180/27 180 460 27 29 27 54


How to Choose the Right Screen Mesh Count:

Different mesh count is used for different applications in the screen printing process. Mesh count is calculated under how many holes on the mesh each per inch, usually we use T represent the holes quantity per centimeter. For example: 305mesh has 305 holes per inch, with 120 holes per centimeter. The higher the mesh count, the finer the threads and there are more holes. The size of the mesh is related with how detailed your image is and how thick the ink you are using is. If you want to print an image with extremely high detail, the fine mesh (high count mesh) is good choice. And if you are using a thicker ink, the low count mesh is better choice. The follosing is the general outline of what sizes to use for certain types of printing.

For the 110mesh (43T) is great for block text letters and larger spot color designs. For white falsj plates we suggest this size too, as you will only have to make one print impression for many times to save production time. For 156mesh (61T) as the finer mesh can offer you some higher detail ability in your image but it also lays down a little thicker layer of screen printing ink. Lower mesh counts such as 40mesh-86mesh are used for shimmer and glitter inks. 200mesh and 230mesh are used for finer detailed images and thinner inks. These mesh sizes can hold larger half tone dots but are not recommended for four color process prints or fine detail half tone printing. For graphic and solvent based silk screening inks that are much thinner should be used with these mesh sizes. For soft feel on the shirt can print use these higher count mesh which less ink trough the screens. 305mesh is used for extremely high detail textile printing and fine halftone four color process and simulated process prints. Fine half tone dots need high fine detail mesh in order to hold and expose on. Higher meshes such as 355mesh, 380mesh, and 420mesh are used mainly for graphic printing with UV inks. UV inks are extremely thin and many times are used for high detail printing on signs, banners, or CD’s. Using a higher mesh allows the automatic printers used in UV printing to regulate the amount of ink passed through the screen.


Why Choose Yellow Mesh:


We recommend that you chose a yellow mesh if you are choosing a mesh count of over 155. Died (yellow) mesh exposes much better than white mesh in the higher counts because it blocks light conductivity through the threads. White mesh is more cost effective and works just as well on lower mesh counts. We do however offer both white and yellow mesh in a variety of different sizes.

Features & advantages:


100% monofilament Polyester mesh yarn imported from Japan or Jintong in China Warping machine imported from Germany Sulzer Ruti weaving machine High tension and low elongation Stable Tension Efficient production Best price, High quality & Excellent service White, Yellow colors (the other colors can be customized) Maximum Width: 3730MM


Packages:

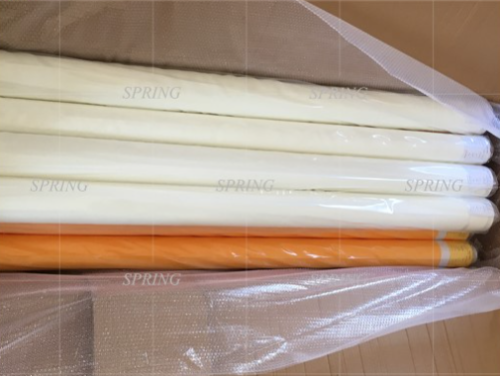

  • Rolled on paper tube or fold up
  • Label card
  • Put into plastic bag
  • Put into carton box
  • Sailcloth outside the carton
